All-Weather Performance

The industry’s best-selling Bi-Color LED panel has evolved. Astra IP is tough and water-resistant, delivering intense output in lightweight 1×1, half-size and 2×1 fixtures with fast set up for high-performance broadcast lighting in demanding environments.



Overview

Power & Punch

Lighting for even the brightest location. With ultra-efficient LEDs and a tight beam angle, Astra IP produces output with impact. Command powerful, flattering, and accurate white light at any intensity, with or without diffusion. Adjust from 2,700K to 6,500K with instant confirmation on the clear LCD screen to match multiple fixtures with confidence.

Ready for Action

From the studio to the street, Astra IP always performs. Rated IP65, Astra IP defies rain, dust, or snow, for seamless operation, whatever the weather. Built tough with an integrated power supply, and optional Gold Mount, V-Mount and BP-U battery plates, Astra IP is the fast fixture that never backs down in any conditions.

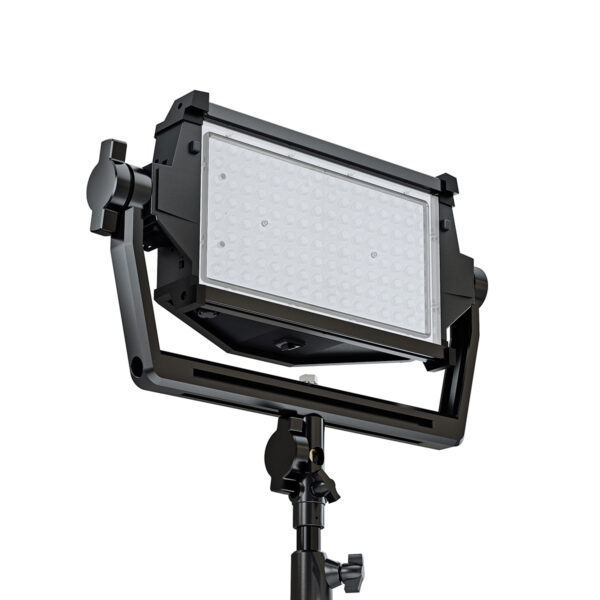

Astra IP Half

Weighing in at just 6.2lb/2.8kg, the lightweight Astra IP Half is perfect for small spaces and low ceilings. The most compact in the range, it boasts a powerful 1,500 lux output at 10ft/3m, delivering weatherproof reliable performance and exceptional brightness, rain, or shine.

Features:

• Built tough: IP65-rated Bi-Color panel with 3-year warranty.
• Powerful performance: High-output, intense beam.
• True to life: Accurate color, with no shift at any intensity.
• Control with confidence: Dual-dial system with LCD screen information.
• Quick setup: Lightweight, designed for mounted or handheld operation.
• Off-grid ready: Optional weatherproof battery brackets.
• Control options: Integrated Bluetooth for app control. Optional Astra IP DMX module.
• Customizable: Diffusion panel included with optional accessories.

Technical Specifications

Ambient Temp Operation-20 °C to 45 °C-4 °F to 113 °F
CRI Daylight9595
CRI Tungsten9595
Color Temperature2,700° - 6500°K2,700° - 6500°K
Comparative OutputDaylight (Lux at 10ft/3m): 1500Daylight (Lux at 10ft/3m): 1500
Depth10.6 cm4.17 in
Depth (Without Yoke)10.6 cm4.17 in
Dimming ControlConstant Current 0-100% Continuous (flicker free)Constant Current 0-100% Continuous (flicker free)
Estimated LED lifetime50000+ hrs50000+ hrs
Height30.8 cm12.13 in
Height (Without Yoke)18.9 cm7.44 in
Lighting Control ModesCCT/FX single dial with LCD menu controlCCT/FX single dial with LCD menu control
Max Power Draw63W63W
Mounting MethodTVMPTVMP
Optics30° custom TIR lens30° custom TIR lens
RangeAstra IP, HalfAstra IP, Half
Remote ControlBluetooth (integrated), DMX, RDM (requires separate module)Bluetooth (integrated), DMX, RDM (requires separate module)
USB UpdatesYesYes
Weight2.8 kg6.17 lb
Width43.2 cm17.01 in
Width (Without Yoke)37.6 cm14.8 in
