The industry workhorse

With over 60,000 units sold – and counting – seen lighting up newsrooms, studios and location sets around the world, Astra is the industry workhorse trusted to deliver exceptional and consistently high-quality light in a lightweight, tough and dependable fixture.
Light enough to hand hold and compact enough to fit into tight spaces, the versatility of Astra makes it the number one choice for DoPs, lighting camera operators and studio lighting designers everywhere.

Brighter lighting for extra creativity

Shape and create more light with the powerful Astra 3X delivers over 900 lux of quality light at 3m at any color temperature from 3200K to 5600K, producing enough light for you to design creative set lighting using light shaping tools or modifiers without compromising on light output.  With greater light output you can use higher framerates on your camera to capture incredible slow-motion scenes, flood studio sets with a wash of consistently beautiful illumination or compete with the midday sun to show your talent in their best light.

Dependable accuracy for true life color

Render skin tones perfectly with true to life color reproduction. With a CRI rating of 95 and TLCI of 98, Astra’s beautiful light output delivers outstanding color accuracy. And, with no color shift at any dimming level from 100-0% you can depend on Astra to deliver consistently reliable high-quality light all day.

Lightweight and flexible for endless opportunities

Quality light wherever you need it in an instant.  Weighing in at just 3.2kg the ultra-light Astra is easy to transport and quick to rig or reposition on your set, use lightweight lighting supports or even hand hold for studio-level lighting anywhere. The adjustable onboard power supply mount means that Astra is always perfectly balanced ready for action.

Technical Specifications

Range 1x1 LED Panels 1x1 LED Panels
Color Temperature Bi-color Bi-color
Max Beam Angle 46 46
CRI Daylight 97 97
CRI Tungsten 98 98
Width 45 cm 17.72 in
Height 41.3 cm 16.26 in
Depth 13.4 cm 5.28 in
Weight 3.2 kg 7.1 lb
Gel Filter Optional Accessory Optional Accessory
Max Power Draw 55W 55W
Optics Custom Lens Custom Lens
Remote Control Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module
IP Rating IP20 IP20
Field Angle 70 70
Power Supply 13-24VDC 120-240VAC 13-24VDC 120-240VAC
Battery Option? Optional battery bracket (not included) Optional battery bracket (not included)
Wireless? Yes Yes
Mounting Method TVMP TVMP
Rear LCD Screen Optional Optional

In The Box

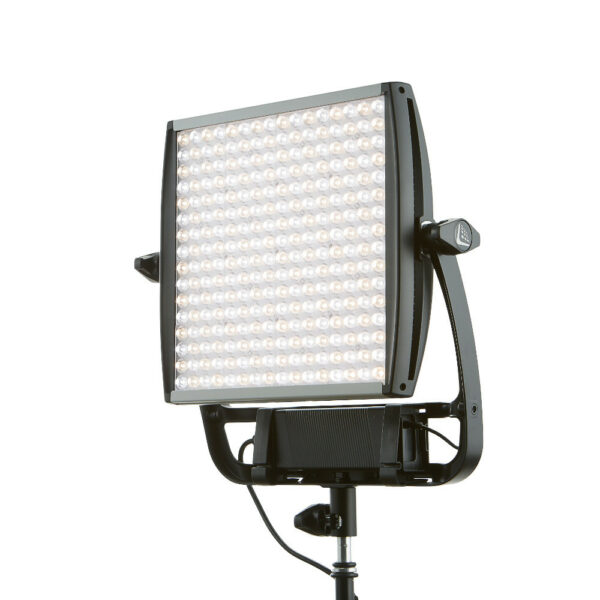

  • Astra 3X Bi-Color Fixture
  • Standard Yoke
  • Power Supply
  • US & EU Power Cables

Color Charts
