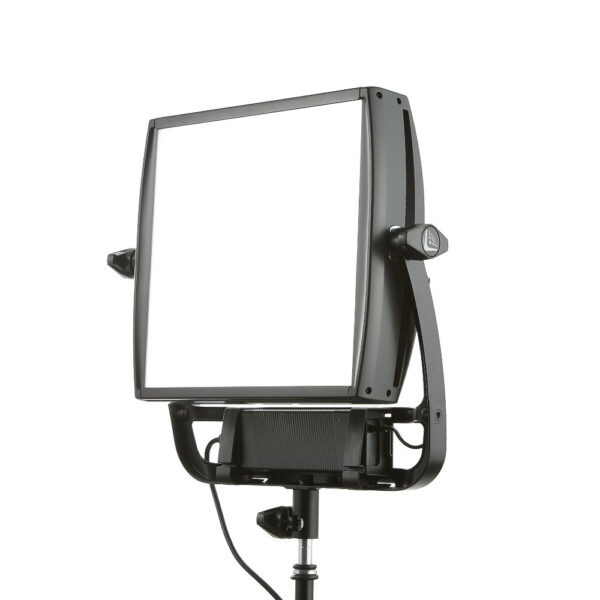

Litepanels’ Astra Soft Bi-Color LED Panel provides wide, soft, color-accurate white light to beautifully illuminate your talent. Adjustable from 3200K to 5600K, Astra Soft Bi-Color LED Panel adapts to fit your lighting needs, all in a lightweight and compact fixture. Astra panels provide industry-leading reliability with automatic flicker-free performance at any frame rate or shutter angle, and at any intensity level. With a low power draw of 105W, Astra Soft Bi-Color LED Panel delivers the same performance whether on location with battery power or in the studio. With a CRI/TLCI of 98, color rendition is perfect for flattering skin tones, and wrapping your subjects with unrivaled, beautiful light.

Learn more about Astra

Technical Specifications

Range 1x1 LED Panels 1x1 LED Panels
Color Temperature Bi-color Bi-color
Max Beam Angle 94 94
Comparative Output 125W HMI 750W Tungsten 125W HMI 750W Tungsten
CRI Daylight 98 98
CRI Tungsten 98 98
Width 45 cm 17.72 in
Height 41.3 cm 16.26 in
Depth 13.4 cm 5.28 in
Weight 3.2 kg 7.1 lb
Gel Filter Optional Accessory Optional Accessory
Max Power Draw 105W 105W
Optics Soft Diffusion Soft Diffusion
Remote Control Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module
IP Rating IP20 IP20
Field Angle 158 158
Power Supply 13-24VDC 120-240VAC 13-24VDC 120-240VAC
Battery Option? Optional battery bracket (not included) Optional battery bracket (not included)
Wireless? Yes Yes
Mounting Method TVMP TVMP
Rear LCD Screen Optional Optional

In The Box

  • Astra Soft Bi-Color Fixture
  • Standard Yoke
  • Power Supply
  • US & EU Power Cables
