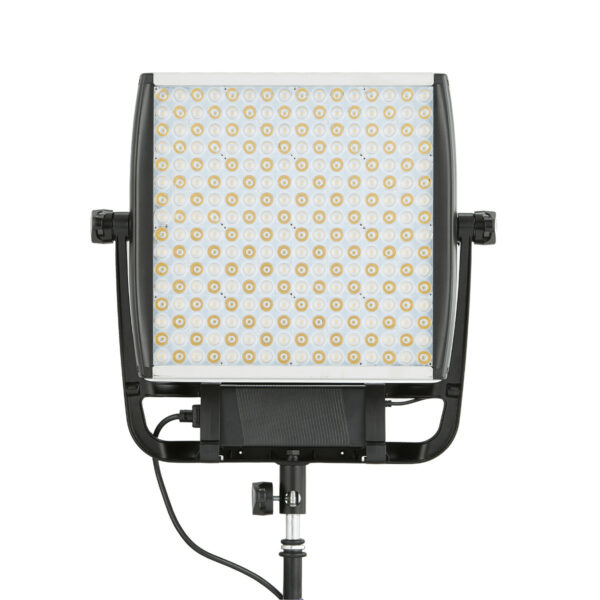

Litepanels’ Astra Bi-Focus Daylight LED Panel creates bright and color-accurate white light that can be instantly adjusted from 15 to 45 degrees to deliver the perfect beam for your needs. Isolate subjects, control light spill or light a wide space with power, performance and beauty all in a lightweight and compact fixture. Astra panels provide industry-leading reliability, with automatic flicker-free performance at any frame rate or shutter angle, and at any intensity level. With a CRI/TLCI rating of 95, the Astra Bi-Focus Daylight LED Panel provides outstanding color rendition. The Astra Bi-Focus Daylight LED Panel adjusts quickly from a tightly focused beam to a wide-range flood, and anywhere in between, providing the ultimate on-location flexibility.

Technical Specifications

Range 1x1 LED Panels 1x1 LED Panels
Color Temperature Daylight Daylight
Max Beam Angle 45 45
CRI Daylight 95 95
Width 45 cm 17.72 in
Height 41.3 cm 16.26 in
Depth 13.4 cm 5.28 in
Weight 3.2 kg 7.1 lb
Gel Filter Diffuser (INCLUDED) Diffuser (INCLUDED)
Max Power Draw 105W 105W
Optics Custom Spot and Flood Lens Custom Spot and Flood Lens
Remote Control Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module Wireless DMX (LumenRadio) Module / Wired DMX Modules (RJ-45 and XLR5) / Bluetooth Module
IP Rating IP20 IP20
Power Supply 13-24VDC 120-240VAC 13-24VDC 120-240VAC
Battery Option? Optional battery bracket (not included) Optional battery bracket (not included)
Wireless? Yes Yes
Mounting Method TVMP TVMP
Rear LCD Screen Optional Optional

In The Box

  • Astra Bi-Focus Daylight Fixture
  • Diffusion Gel
  • Standard Yoke
  • Power Supply
  • US & EU Power Cables
