The Brightest. The Lightest.

Brighter than any other 2×1 panel, yet lighter than its peers, Gemini 2×1 Hard is a beautiful paradox delivering up to 23,000 lux of glorious high quality cinematic lighting in a lightweight agile fixture.

Gemini 2×1 Hard can deliver a powerful 20° beam of accurate hard white light, or seamlessly switch to a beautiful soft 100° wash, and at the touch of a button, unleash a world of creativity with full RGBWW output and special effects. With dual or quad mounting options to bank fixtures together creating up to four times the volume of intense light, Gemini 2×1 Hard is the ultimate production light.

Learn more about Gemini 2x1 Hard

Technical Specifications

Range 2x1 LED Panels 2x1 LED Panels
Color Temperature RGBWW RGBWW
Max Beam Angle 100 100
Comparative Output 23000 lux Daylight at 10ft/3m, 20000 Tungsten at 10ft/3m 23000 lux Daylight at 10ft/3m, 20000 Tungsten at 10ft/3m
CRI Daylight 95 95
CRI Tungsten 95 95
Width 63.4 cm 24.96 in
Height 32 cm 12.6 in
Depth 17.6 cm 6.93 in
Weight 11.5 kg 25.4 lb
Gel Filter Optional Daylight or Tungsten source Optional Daylight or Tungsten source
Max Power Draw 500W 500W
Optics Ultra Light diffusion panel, Domed diffusion panel Ultra Light diffusion panel, Domed diffusion panel

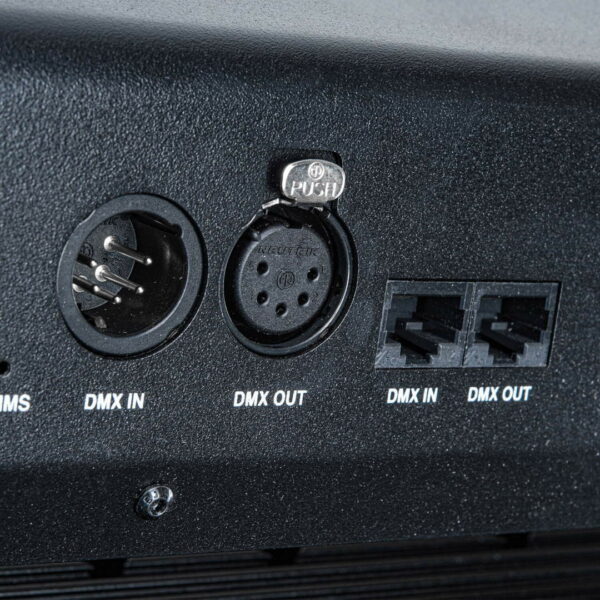

Remote Control Built-in Wired DMX (RJ-45 and XLR5) / Wireless DMX (LumenRadio) Module / Bluetooth Module Built-in Wired DMX (RJ-45 and XLR5) / Wireless DMX (LumenRadio) Module / Bluetooth Module
IP Rating IP20 IP20
Field Angle 156 156

In The Box

  • Litepanels Gemini 2×1 Hard RGBWW Fixture with integrated power supply
  • Pole-Operated Yoke with Junior Pin
  • EU Power Cable
  • Ultra Light Diffusion
  • Domed Diffusion
